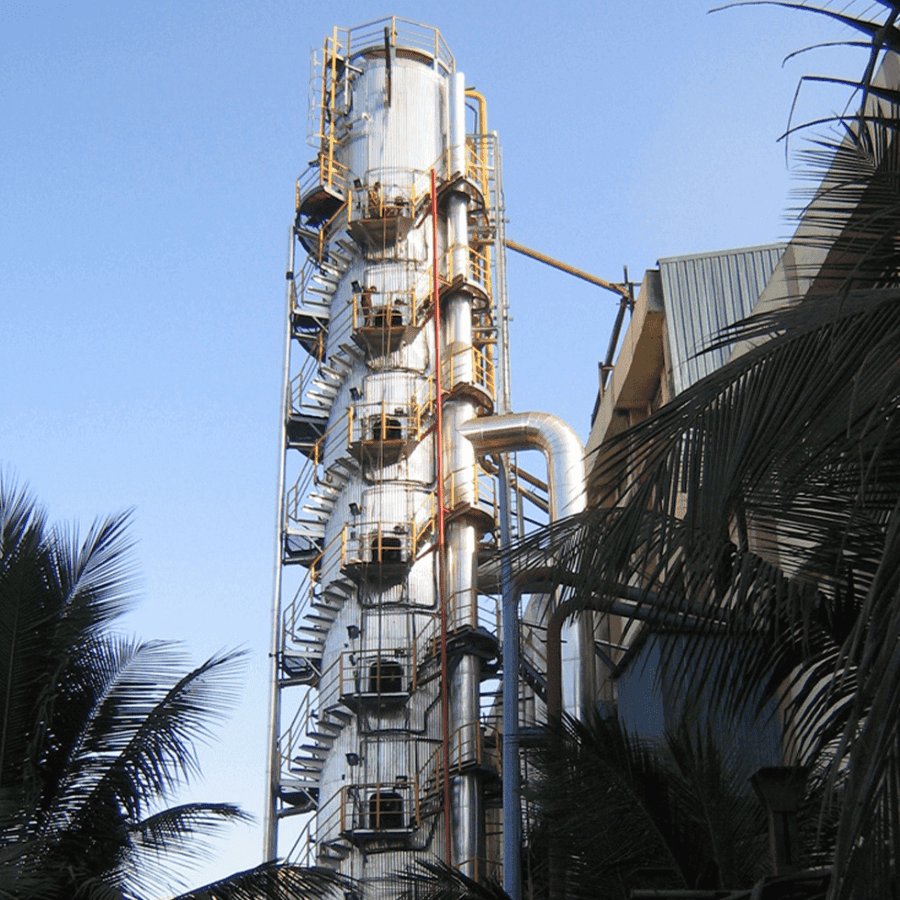

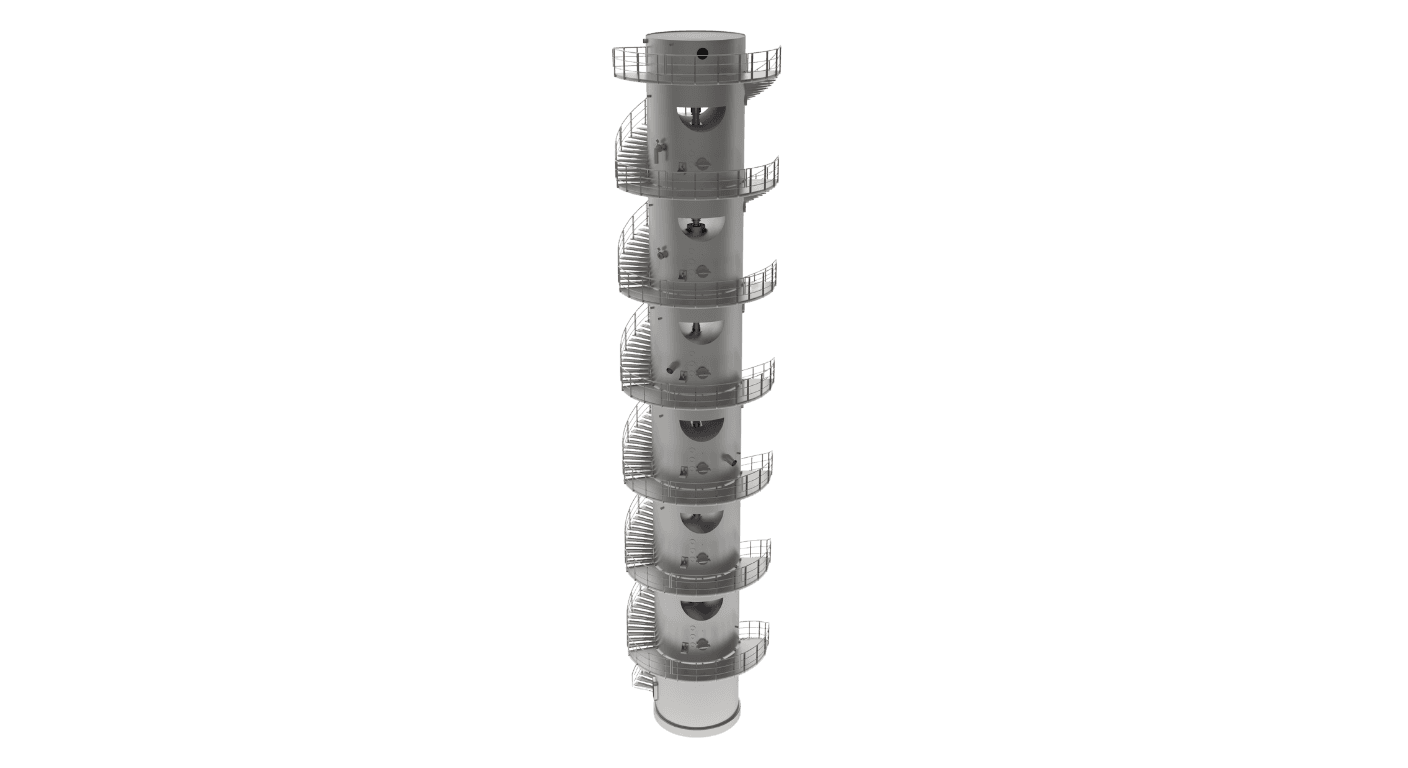

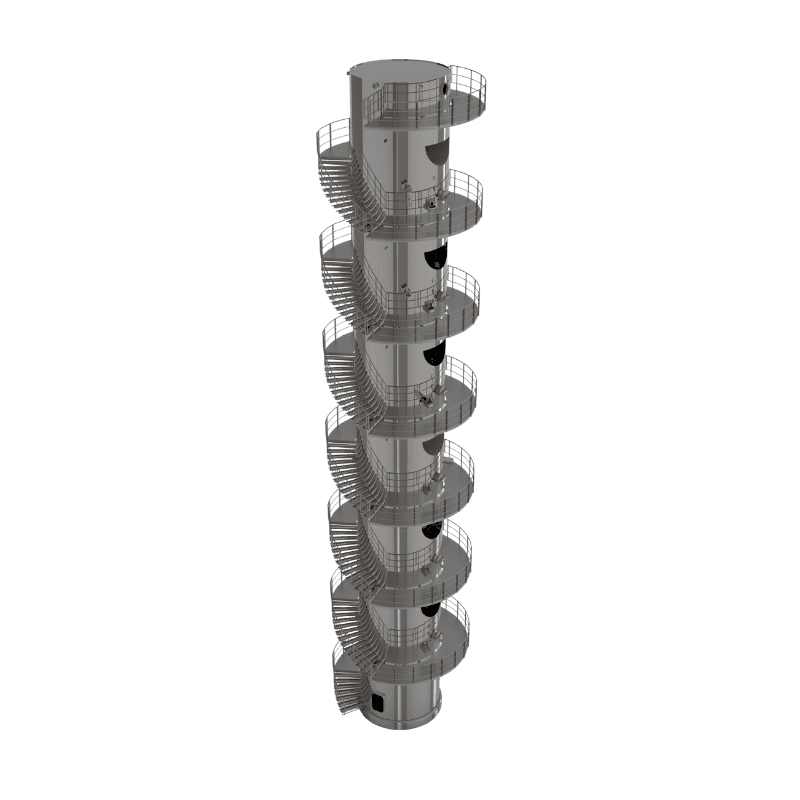

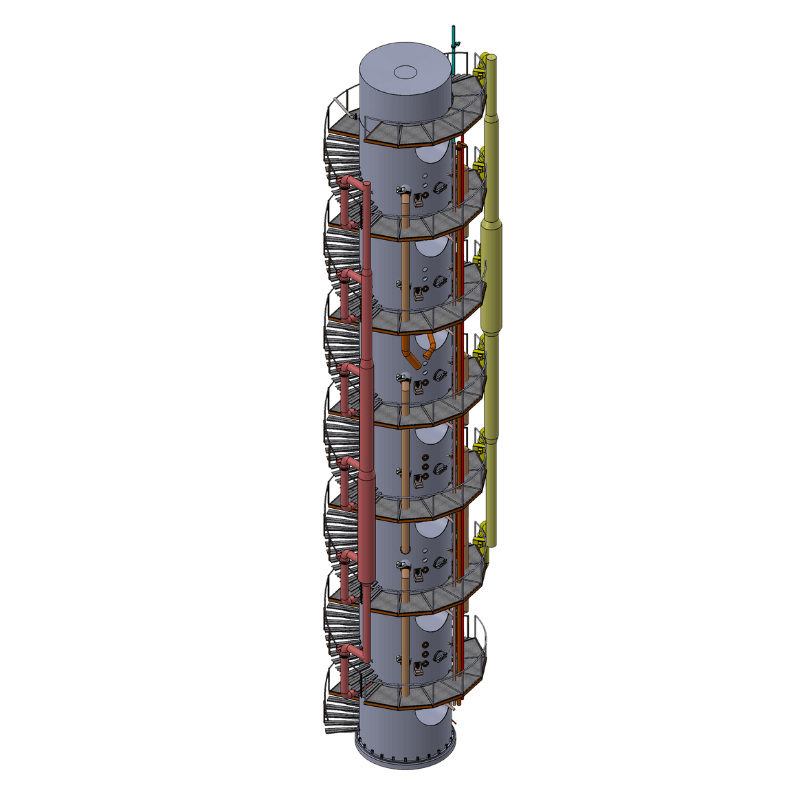

Spray Continuous Pan® (SCP®)
SED’s modular design vertical continuous pan with multiple chambers having honeycomb calandria features a bundle of tubes arranged in a honeycomb pattern without traditional top and bottom tube plates. A central downtake, equipped with SED’s uniquely designed six-blade mechanical circulator, boosts massecuite circulation for uniform crystal growth, higher exhaustion and higher heat transfer within the tubes. Automated chamber bypass system enhances the cleaning cycle efficiency as needed, while the overhead storage tank ensures an uninterrupted supply of feed and water to the SCP.

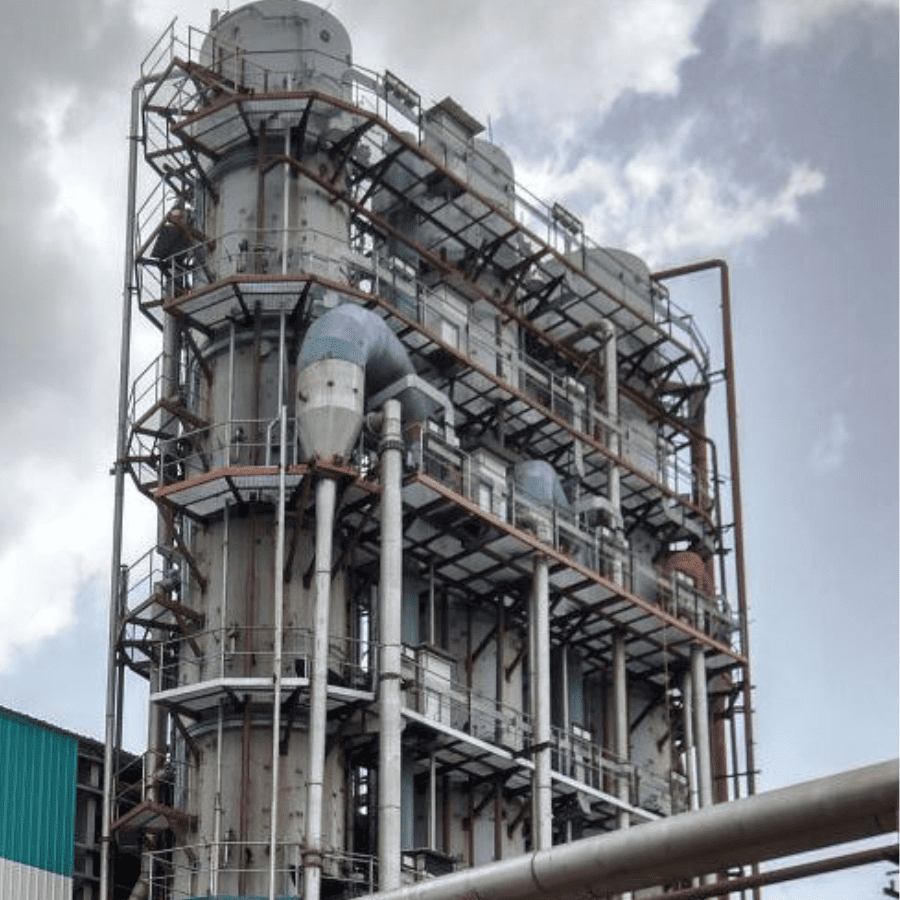

Working Principle
Heat Transfer
Steam or vapour condenses on the outside of the tubes, transferring heat to the feed (juice/massecuite) inside the tubes. This causes water to evaporate, concentrating the solution. The honeycomb calandria design enables operation at a lower temperature difference (ΔT), ensuring efficient evaporation and controlled crystallization while minimizing sucrose degradation.
Massecuite Circulation
Efficient circulation is promoted by the large central downtake and optimized honeycomb tube arrangement. This ensures uniform flow throughout the calandria, preventing localized overheating, eliminating stagnant zones, and maintaining consistent concentration across the pan.
Evaporation and Crystallization
As evaporation progresses, the liquor becomes supersaturated, initiating and sustaining crystal growth. Continuous circulation keeps crystals uniformly suspended, ensuring homogeneous growth and a narrow crystal size distribution. The generated vapours are either condensed in a condenser or reused through Mechanical Vapour Recompression (MVR), reducing overall energy consumption.
Continuous massecuite Discharge
Massecuite discharge to the crystallizer can be configured either from the bottom via pumping or from upper chambers through gravity flow, based on site conditions and the type of massecuite (A, B, C, or Refined).
Why IsIt Needed?
Improves sugar quality with uniform crystallization and better massecuite circulation.
Increases yield through higher exhaustion.
Efficient heat transfer and low ΔT operation significantly reduce energy consumption.
Handles all massecuite types while minimizing false grains and colour inclusion.
Compatible with low-temperature vapor, allowing seamless integration with MVR systems
Fully automated system ensures easy operation and low maintenance.
Improves sugar quality with uniform crystallization and better massecuite circulation.
Handles all massecuite types while minimizing false grains and colour inclusion.
Increases yield through higher exhaustion.
Compatible with low-temperature vapor, allowing seamless integration with MVR systems
Efficient heat transfer and low ΔT operation significantly reduce energy consumption.
Fully automated system ensures easy operation and low maintenance.
SalientFeatures
Enhanced heat transfer improves crystallization and enables reliable operation with low-temperature vapors, ensuring MVR compatibility.
Improved circulation and uniform saturation reduces conglomeration, prevents false grain formation, minimal colour inclusion and deliver higher massecuite quality.
Large downtake enables efficient circulation.
Reduced massecuite stagnation due to the absence of tube plates, leading to lower washing steam consumption and minimized sugar recirculation.
Optimized design enables integration of larger heating surfaces, allowing for higher-capacity pans within a reduced footprint.
Reduced diameter and prefabricated single-piece chamber significantly lower transportation costs and minimizes installation time.
Efficient extraction of non-condensable gases (NCGs) enhances overall thermal performance, ensuring optimal steam utilization and reduced energy demand.
Superior material grades for calandria enhances equipment durability and extends service life..
Suitable for all types of massecuites (Refined, Raw, A, B and C).
Integrated state-of-the-art automation system enables real-time data monitoring and efficient control via DCS, eliminating the need for physical presence at the equipment.
Capable of operating across a wide capacity range, with chamber bypass functionality for individual chamber cleaning accessible at the click of a button.
Revolutionizing Efficiency,Setting New Standards
Step into the future of process optimization with SEDL's Spray Continuous Can. Experience how our state-of-the-art design and dedication to innovation can enhance your operations—delivering consistent spray performance, improved efficiency, and dependable results in continuous processing environments..
