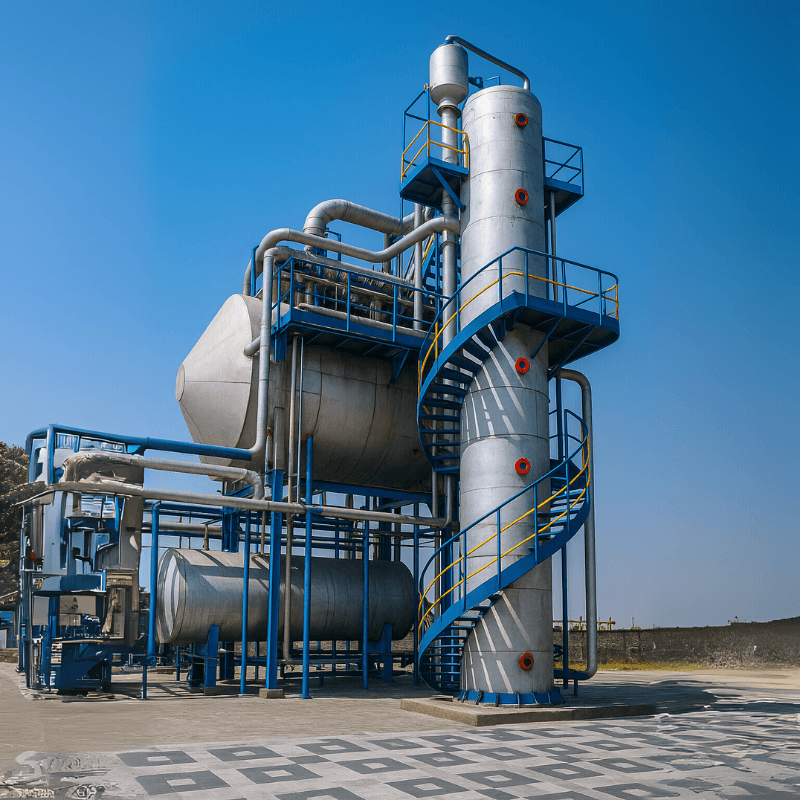

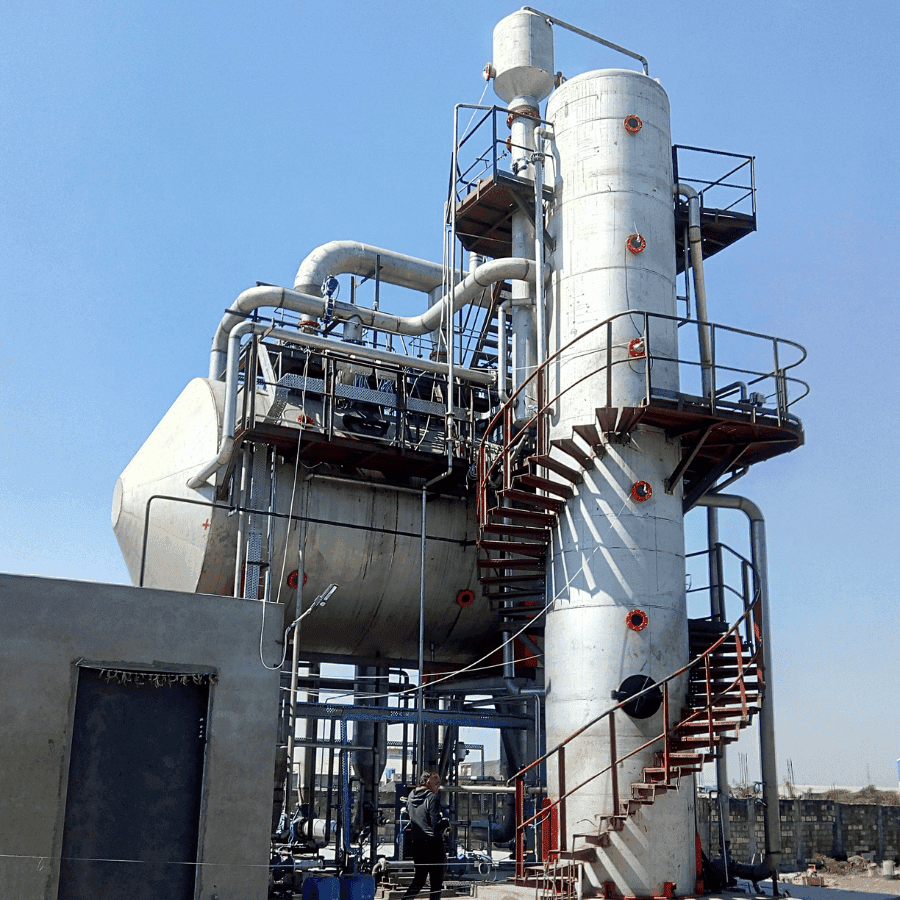

Forced Circulation Evaporator
A Forced Circulation Evaporator (FCE) concentrates highly viscous, high fouling, and crystalizing solutions using a tubular calandria and circulator/axial pump for efficient operation under vacuum or pressurized conditions.
Continuous circulation ensures uniform concentration and prevents the buildup of solids on the heating surface area, with MOC (materials of construction) - such as SS304, SS316, or Titanium - selected for fluid compatibility.

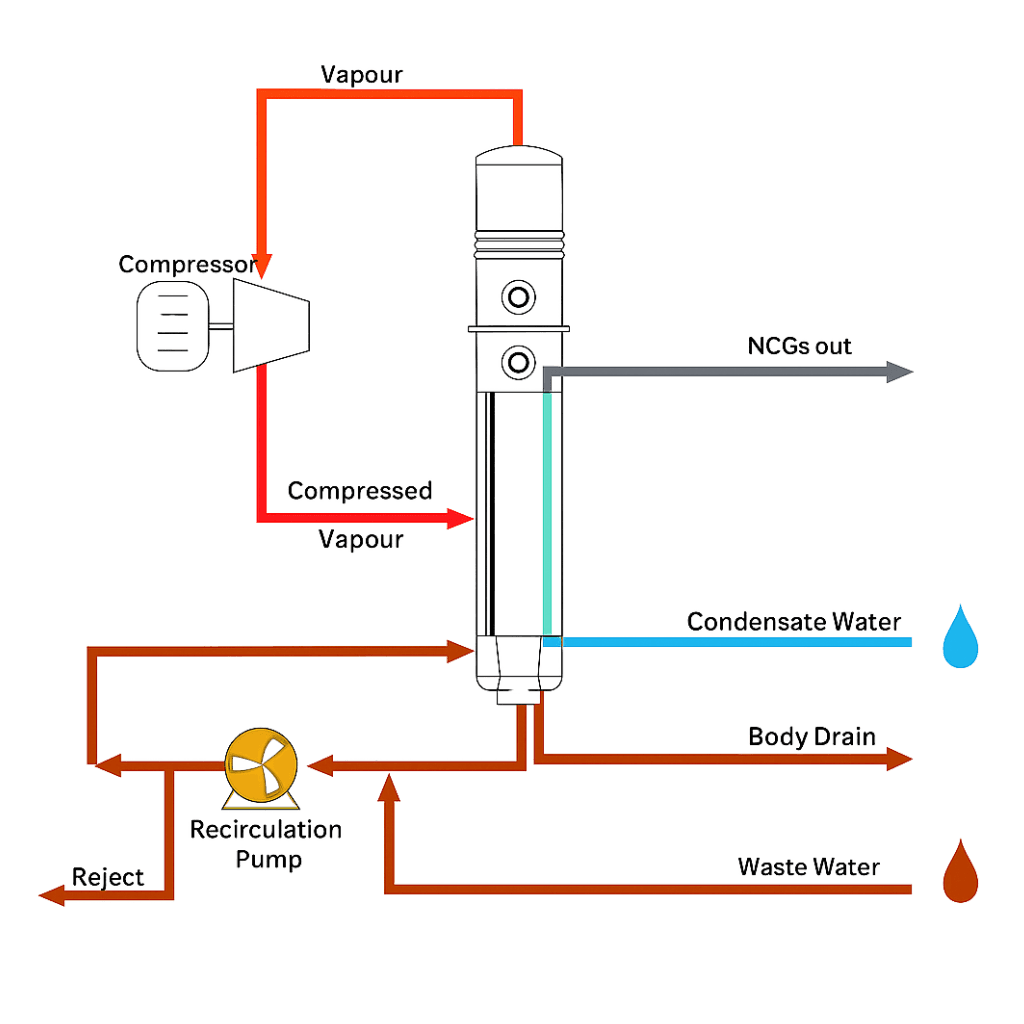

Working Principles
Heat Exchange
In an FCE, vapor and liquid remain in indirect contact - the fluid flows through the tubes while steam heats them from outside.
Circulation

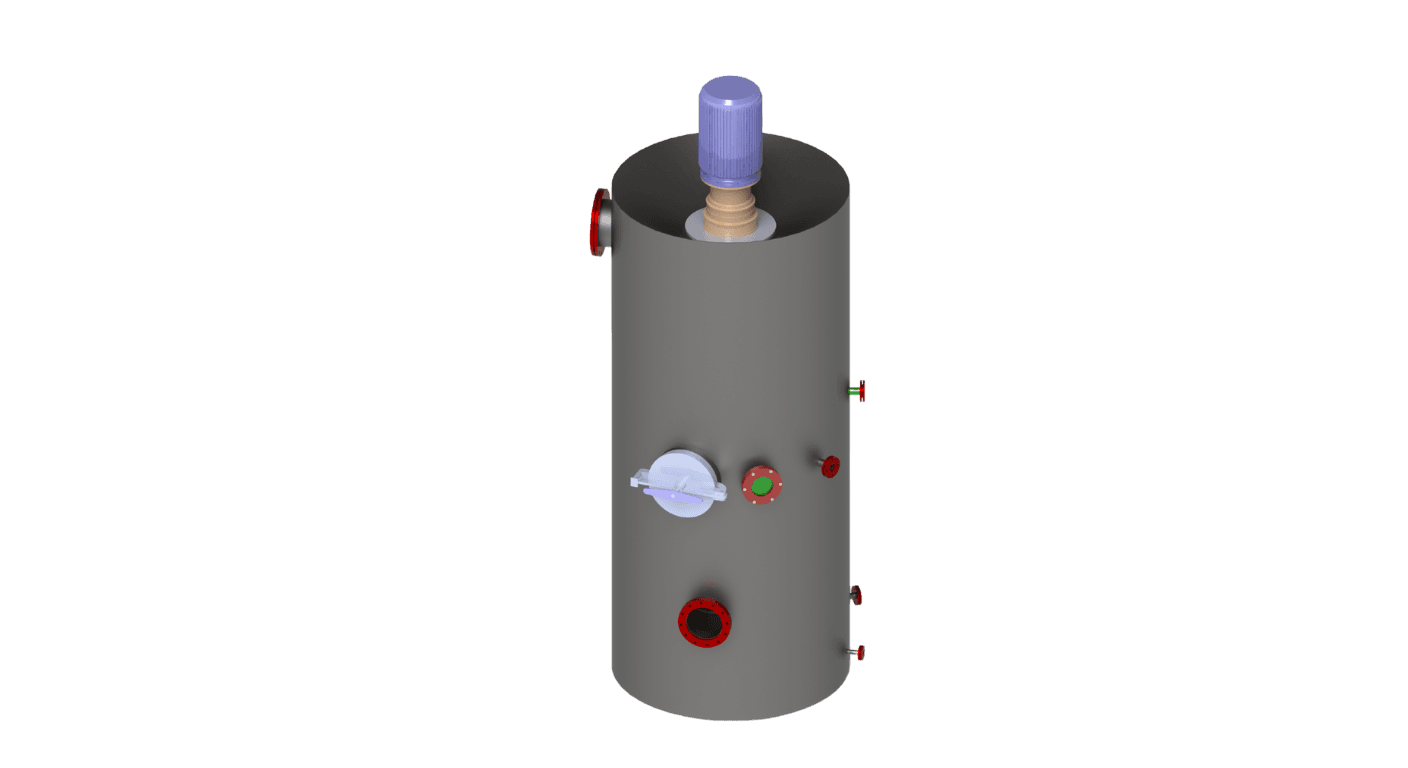

Our innovative circulator, directly coupled to the shaft, delivers higher thrust for enhanced circulation through tubes, ensuring a high heat transfer coefficient (HTC).
Evaporation Terminology
Steam applied in calandria transfers heat to the liquid rising inside the tubes, resulting in efficient vapor formation.
Entrainment Separation
In-built UN-MIST technology, featuring an embossed plate-type design, enables efficient separation of vapor from the liquid.
Why Is It Needed?
Enhances heat transfer efficiency through high-velocity circulation.
Minimizes scaling and fouling, ensuring cleaner operation.
Handles high-viscosity and pressurized fluids, ideal for tough applications.
Reduces maintenance and downtime, improving long-term reliability.
Enhances heat transfer efficiency through high-velocity circulation.
Handles high-viscosity and pressurized fluids, ideal for tough applications.
Minimizes scaling and fouling, ensuring cleaner operation.
Reduces maintenance and downtime, improving long-term reliability.
Salient Features
High Heat Transfer Coefficient
Enables rapid and efficient evaporation through superior heat transfer rates.
Compatible for High-Viscosity Liquids
Handles high-viscosity, highly corrosive, and crystallizing liquids with ease.
Less Fouling Rate
High liquid velocity minimizes solid buildup on heating surfaces.
Reduced Operational Cost
Enhanced efficiency and low fouling translate to long-term cost savings.
Ease of Installation
Skid mounted with inbuilt vapor separator facilitates ease in transportation and erection.
Automated Control
Advanced automation enables complete equipment control, preventive maintenance alarms, and enhanced safety measures, including CIP (Cleaning-In-Place), from the DCS (Distributed Control System) with no manual intervention.
24x7 Remote Operational Support
Continuous online monitoring, assistance, and control to ensure uninterrupted performance, quick troubleshooting, and optimal operation of equipment from anywhere.
Strengthen the Process with SEDL's Forced Circulation Evaporator Spray's FCE
Designed for maximum efficiency and reliability, SEDL’s FCE is the perfect choice for handling scaling and crystallizing solutions. With features like the Merver design circulator, compact footprint, and intelligent process automation, SEDL’s FCE guarantees improved concentration and cost-effective operations.
