Mechanical Circulator
The SEDL Agitator is engineered for highly viscous solutions involving liquid-liquid or liquid-solid agitation, operating efficiently across low to medium speed ranges. Featuring hydrofoil blade design and stainless-steel construction, it generates effective vertical circulation with low power consumption, ensuring cost-effective operation. Equipped with a heavy-duty planetary gearbox and superior mechanical sealing, this agitator delivers robust performance and reliability. It is especially suited for critical processes like sugar crystallization in vacuum pans, where precise circulation control improves product quality and yield.
How it works

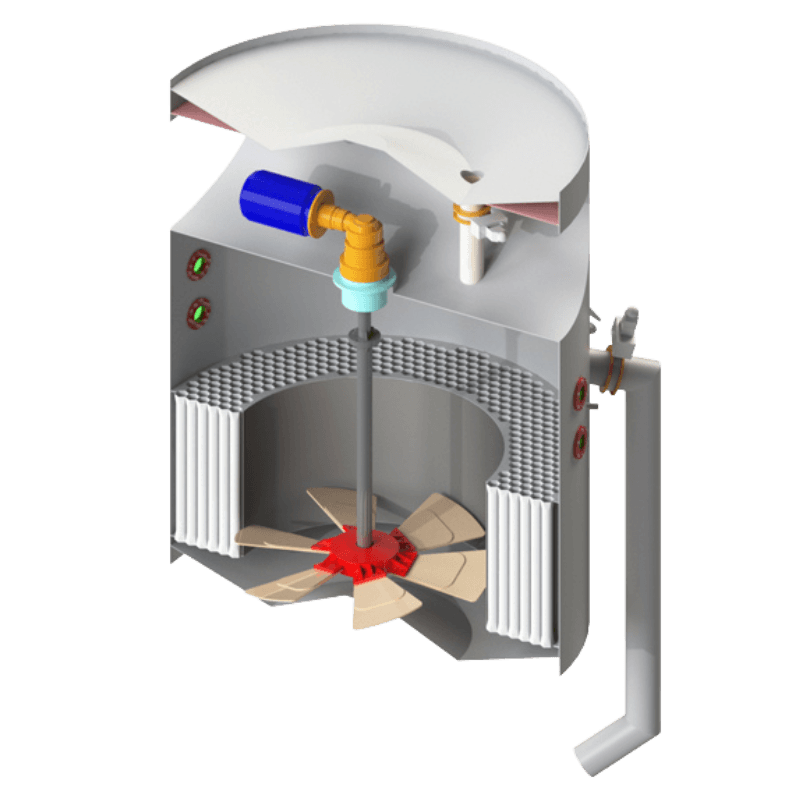

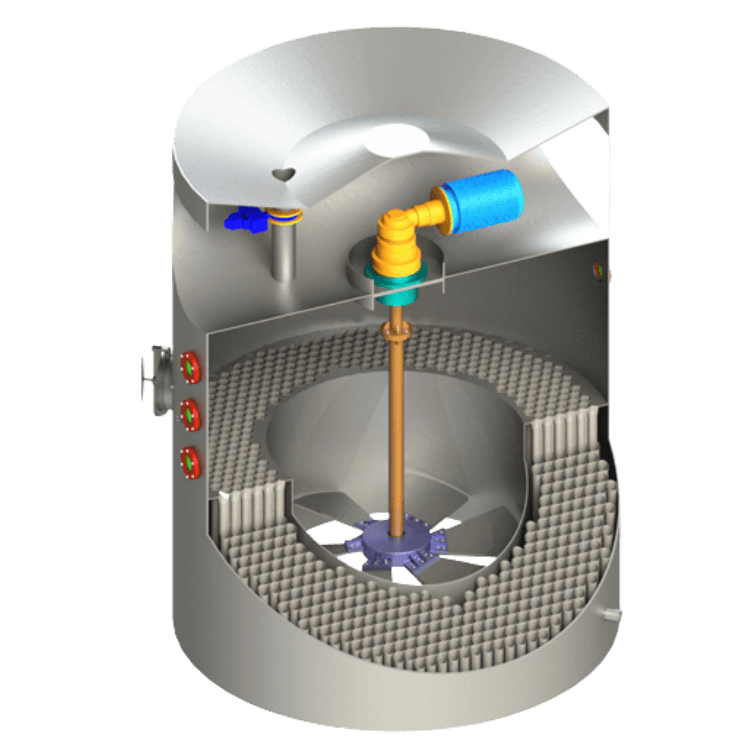

The motor drives the shaft connected to hydrofoil blades inside the vessel.
As the blades rotate, they push the viscous fluid vertically, creating a circulation loop within the vessel.
This circulation causes turbulent mixing that keeps solids suspended and improves circulation.
The agitator speed can be varied to adjust the intensity of mixing depending on the fluid properties and process requirements.
The mechanical seals prevent leaks while allowing continuous rotation under vacuum or pressure conditions.
Why It'sNeeded?
Massecuite Circulation: Ensures maximum throughput and uniform conditions inside vacuum pans, crucial for high-quality crystallization.
Improved Crystal Quality & Reduced Buildup: Prevents dead zones, leading to better crystal size distribution and reduced boiling time.
Increased Recovery: Enhances sugar crystal yield while minimizing molasses purity.
Lower Temperature Difference Operation: Enables operation at reduced temperature differences, improving energy efficiency and product quality.
Massecuite Circulation: Ensures maximum throughput and uniform conditions inside vacuum pans, crucial for high-quality crystallization.
Increased Recovery: Enhances sugar crystal yield while minimizing molasses purity.
Improved Crystal Quality & Reduced Buildup: Prevents dead zones, leading to better crystal size distribution and reduced boiling time.
Lower Temperature Difference Operation: Enables operation at reduced temperature differences, improving energy efficiency and product quality.
Advantages
Superior stainless-steel construction and robust blade design ensure long-lasting performance.
Six nos. hydrofoil blade profile delivers efficient fluid circulation and high head.
Variable speed drive provides operational flexibility for diverse processing needs.
Heavy-duty planetary gearbox and mechanical sealing enhance reliability.
Sturdy blade-shaft joint design ensures stable and effective agitation.
Revolutionizing Efficiency,Setting New Standards
Step into the future of fluid dynamics with SEDL's Mechanical Circulator. Discover how our robust design and engineering precision can revolutionize your process flow—enhancing circulation efficiency, ensuring uniform heat distribution, and driving operational reliability across demanding industrial environments.
