Direct Contact Heater
Direct contact Heater (DCH) is designed to heat the process fluid to the temperature of heating vapor achieving almost zero approach. Utilizing the lower grade heat & improving the overall energy efficiency. Minimum maintenance and cleaning requirements make DCH the top heating solution.

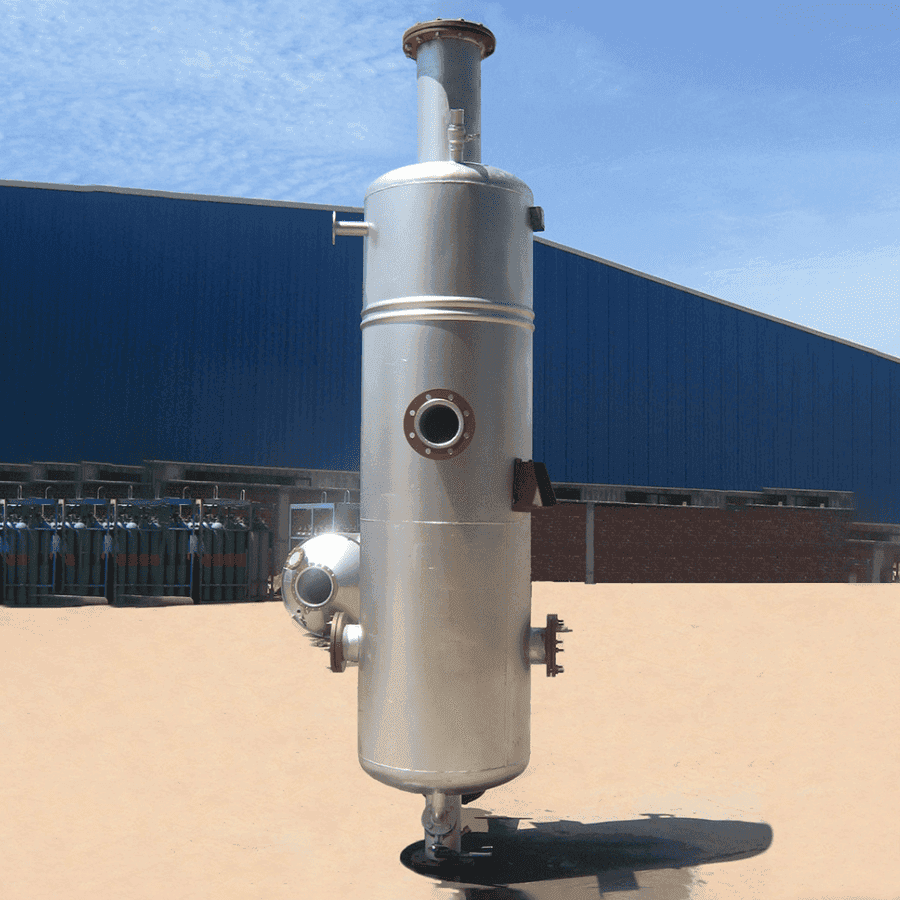

How it Works
The Direct Contact Heater (DCH) system is a component that is used to heat up liquid before it enters the evaporator using heat recovery from vapors or non-condensable gases (NCGs)
Inside direct contact heaters, hot and cold streams are brought to contact without any separating wall and high rates of heat transfer are achieved.

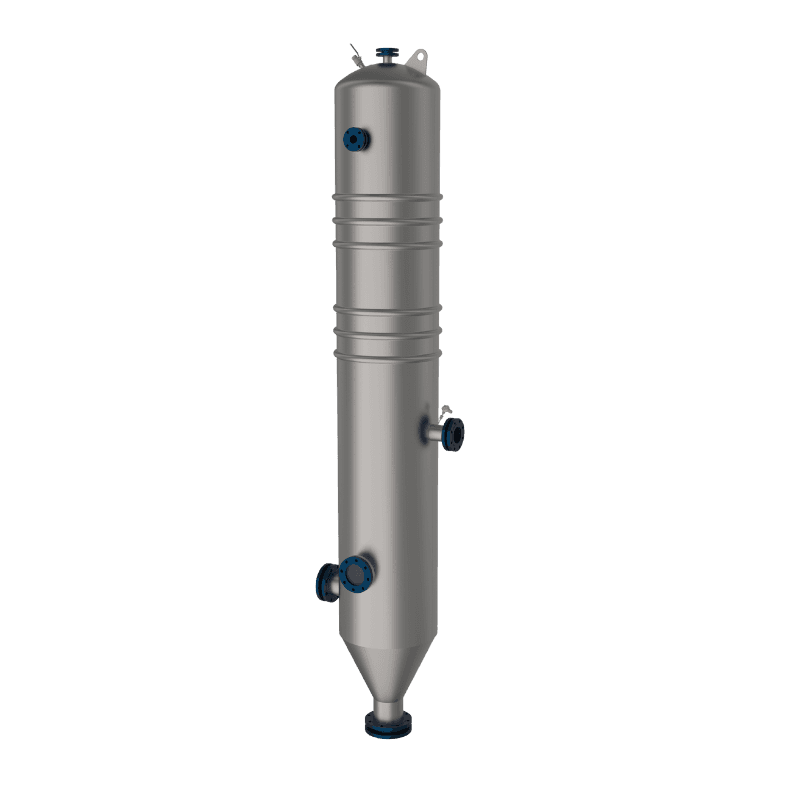

Juice enters through the Juice Inlet, where it encounters high-temperature vapor, introduced through the Vapor Inlet.
The top and the bottom baffles guide the flow of juice and vapor, ensuring maximum contact for efficient heating.
Any non-condensable gases are efficiently removed via the NCG Line to prevent buildup and maintain operational efficiency.
The Catch-All Arrangement effectively removes contaminants, preserving product purity.
The Bottom Annulus facilitates fluid circulation, enhancing heat transfer.
Why IsIt Needed?
Achieves temperature differences as low as 0-1°C between heating and heated media creating a higher final product temperature compared to conventional heaters.
Continuous operation without the need for cleaning, reducing downtime and ensuring uninterrupted production.
Reduced retention times, minimizing sugar losses and improving efficiency.
Zero head loss, reducing the power requirements of pumps and improving energy efficiency.
Achieves temperature differences as low as 0-1°C between heating and heated media creating a higher final product temperature compared to conventional heaters.
Reduced retention times, minimizing sugar losses and improving efficiency.
Continuous operation without the need for cleaning, reducing downtime and ensuring uninterrupted production.
Zero head loss, reducing the power requirements of pumps and improving energy efficiency.
DesignFeatures
Corrugated shell and rib-supported deflectors with inbuilt entrainment separator
High turndown ratio (operate efficiency between 30% - 100% of design flow)
Lightweight structural layout compared to tubular heaters with low-floor space
Effective NCG removal due to counter flow arrangement & ample vapor space to avoid entertainment.
Designed for pressure as well as sub-atmospheric vapor conditions
Advantages
Lower temperature approach
Continuous operation
No maintenance cost
Reduced retention time
Zero Head Loss
Revolutionizing Efficiency,Setting New Standards
Step into the future of heat exchange with SEDL's Direct Contact Heater (DCH). Experience unmatched thermal efficiency, compact design, and zero maintenance operation—engineered to elevate performance and reduce energy consumption.
